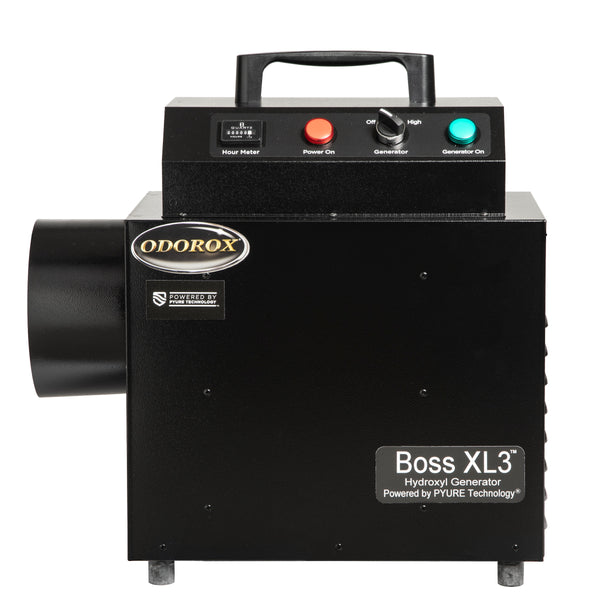

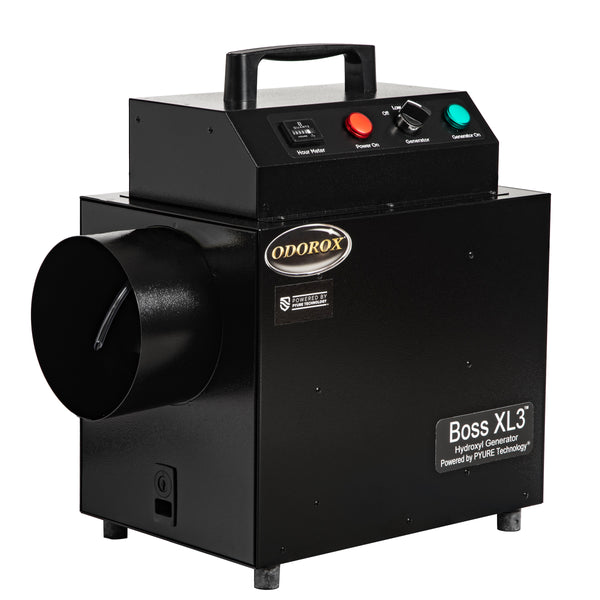

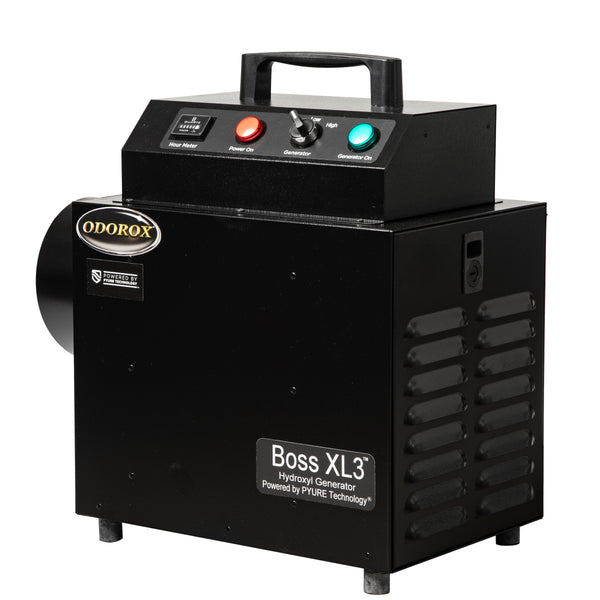

Odorox® Boss XL3™
Hydroxyl Generator
The Odorox Boss XL3 is engineered for the most demanding restoration and remediation projects, delivering the highest hydroxyl output in the Boss family. Capable of treating very large or heavily contaminated spaces, the XL3 unit is trusted by restoration & remediation and janitorial professionals for its ability to quickly and effectively neutralize smoke, mold, sewage odors, and airborne pathogens.
Its robust design withstands tough job-site conditions while delivering dependable performance.
Pyure’s proprietary UV technology sets it apart by producing a superior concentration of hydroxyls and organic oxidants that work faster and more completely than other hydroxyl systems. Safe for occupied spaces, the XL3 offers unmatched results in large-scale environments.

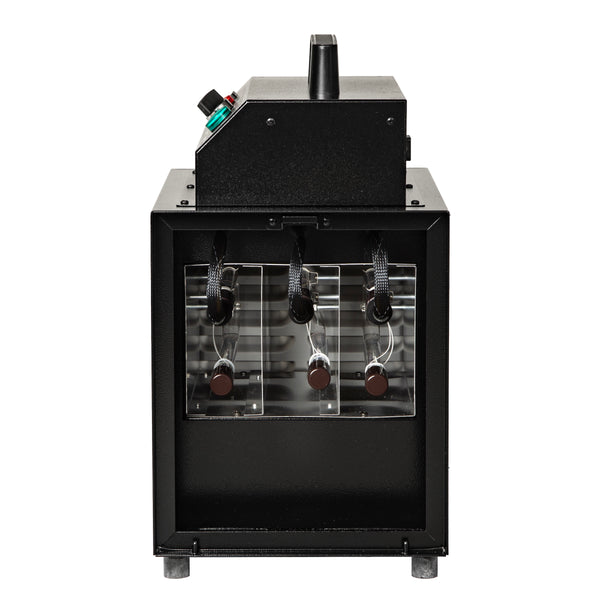

The Boss XL3 comes complete with three UV Optics. Pyure-certified UV Optics should be replaced in this unit after 4,000 - 8,000 hours of use, depending on the applications treated.
Add an extra set of replacement UV Optics to your Boss XL3 purchase for continuous protection.
Operating Guidelines
Odorox Boss XL3
|
|
|
Treatment Range (ft2)
|
1,700 - 3,250
|
|
Treatment Range (m2)
|
158 - 302
|
For optimal performance and safety, the table above summarizes the minimum treatment area in the absence of ventilation and the treatment area range under typical operating conditions: 3 air changes per hour, 90% recirculated air, and 9 foot (2.7 m) ceilings. If the treated space contains a high contaminate or odor load, the effective treatment area will be smaller than the range listed below. These guidelines should be adhered to for optimal performance and safety.
Specifications
|
Dimensions in inches (LxWxD):
|
11.12" x 20.25" x 20.25" (283mm x 514mm x 514mm)
|
|
Weight:
|
25lbs (11.4kg)
|
|
Voltage:
|
120V @ 60Hz
|
|
Power:
|
195 Watts (max) Without Blower
|
| Number of Optics |
3 |
|
Filter:
|
Optional filter available
|
|
Shipping Dimensions:
|
22" x 15" x 29.5" (559mm x 381mm x 749mm)
|
|
Shipping Weight:
|
30lbs (13.6kg)
|
|
Certifications:
|
UL 153, CSA C22.2 #250, CE, RoHS, REACH
|
|
Warranty
|
2 years covering defects in workmanship or materials, but excluding spare parts and consumables.
|

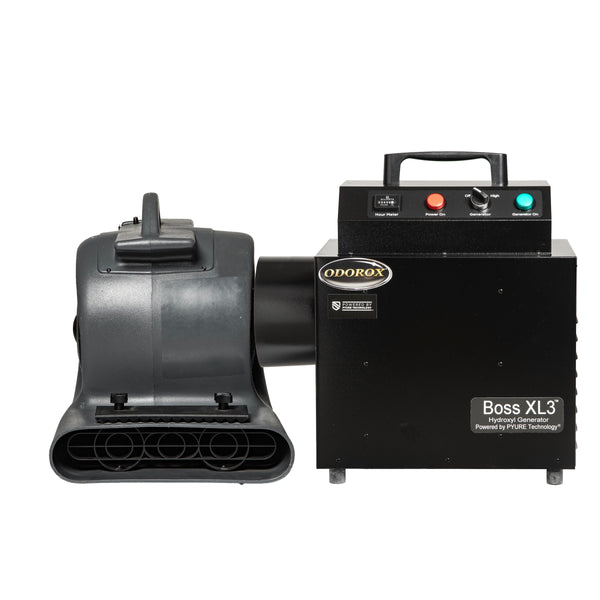

The Boss XL3 Hydroxyl Generator requires and external blower that is not included. Blower should be a minimum 1/2 HP and 1500 CFM.
